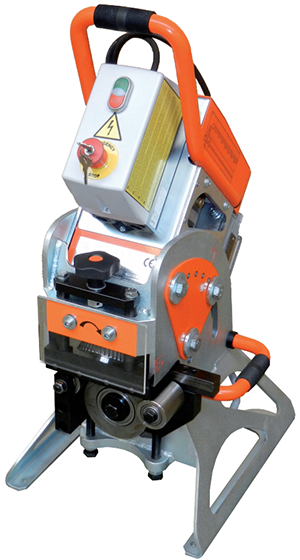

UZ15 Beveling Machine
NKO
UZ 15 is a smaller beveling machine that shears the material in the traditional way. The machine functions both as stationary or movable as you can let the machine propel itself over the workpiece on its own power at the same time as the sheet metal edge is chamfered (3D manipulator is required).
The machine can be equipped with a 3D manipulator which allows you to leave the workpiece stationary and you can then work the top or bottom of the workpiece or both and without turning the workpiece.
- Beveling is done through shearing
- The beveling angle is adjustable between 15°- 50°
- Maxmium beveling width 15mm
- Material thicknesses between 6-40mm can be machined
- The machine can process steel, cast iron aluminum, aluminum alloys, copper, etc.
- The speed of the feed device can be regulated between 0.65-1m / minute
- Machine weight: 94kg
- Machine size: 530x395x860 (mm)
