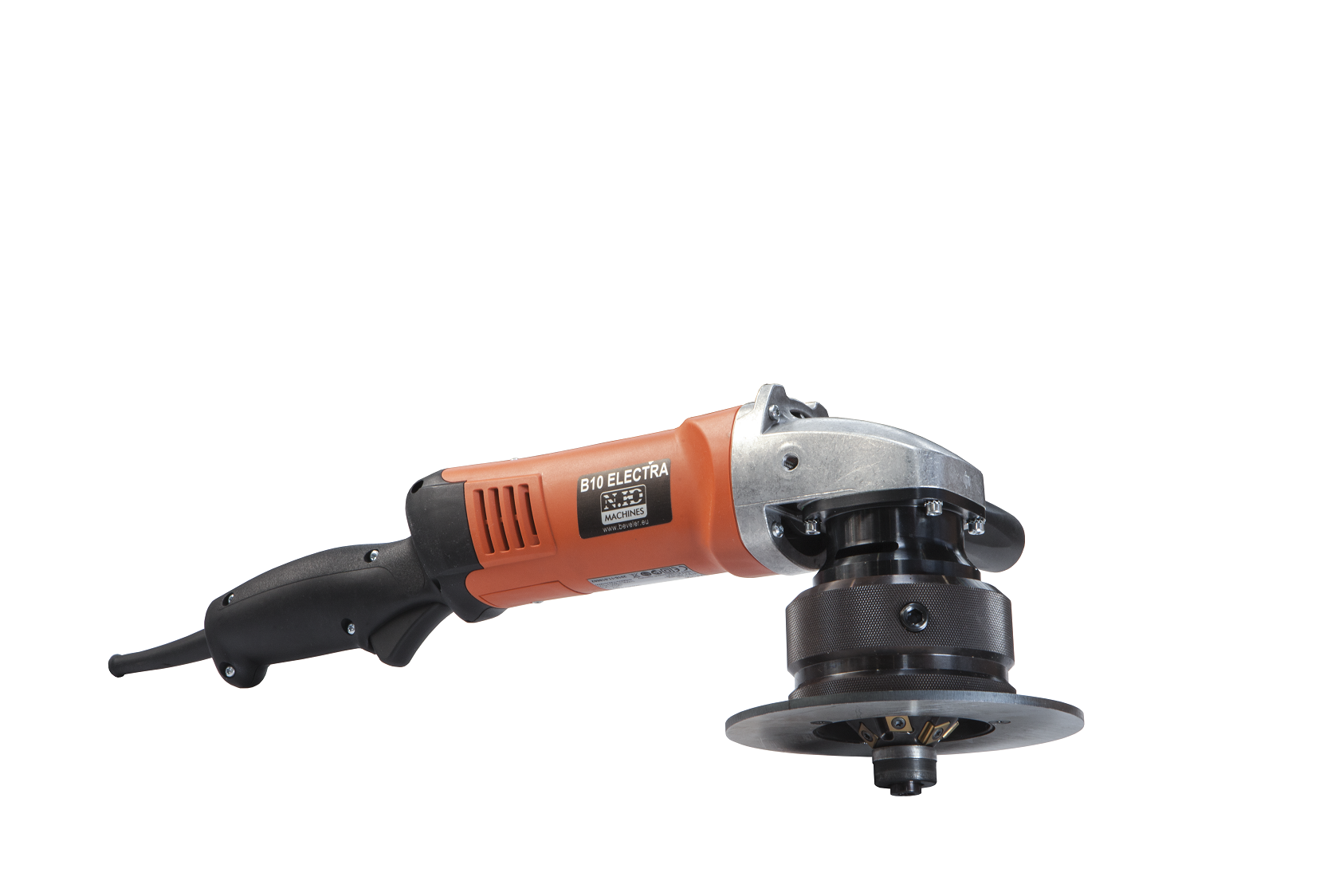

Deburring Machine B10 Electra
B10 Electra is a powerful electrical deburring machine. Materials that can be machined are black sheet, stainless steel, aluminum and other materials. The machine is equipped with a replaceable tool holder which allows you to bevel different phase angles, standard angles on holders are the following 30°, 37.5°, 45°, 50°, 60° other angles can be custom ordered. The machine is equipped with a scale so that you can set the bevel height exact.
- The machine is ergonomically designed.
- Weighs only 6kg
- Cuts are available for purchase so that you can make edge rounding with a radius of 2.5 / 3.5 / 4mm
- High quality engine and transmission from German Fein.
- Bevel angle: 30-60° (other angles can be custom ordered)
- Bevel width: 10mm
- Edge rounding radius: R=2.5, 3.5, 4mm
- Speed: 2700-8500 Rpm
- Voltage: 230V/ 50Hz
- Power: 1700W
- Weight: 6kg
