Avgradningsmaskin B15 Electra
NKO

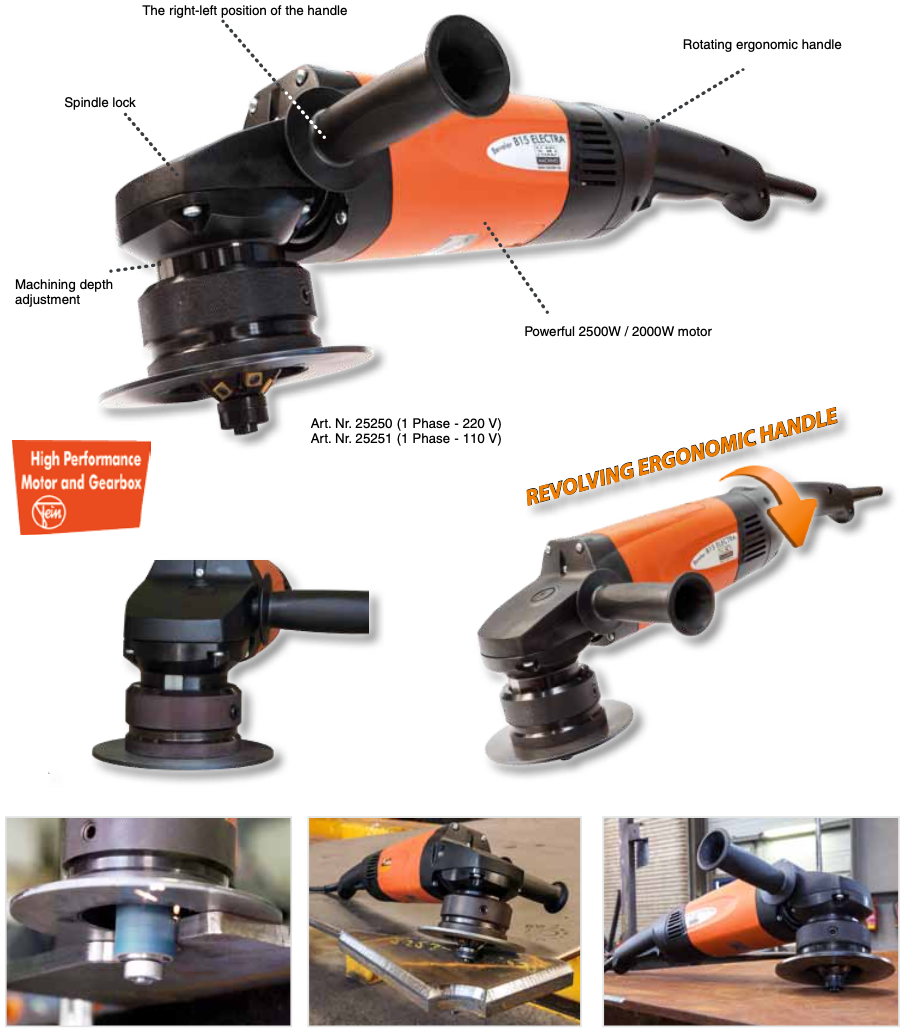

B15 Electra is a powerful electric phase machine. Materials that can be machined are black sheet, stainless steel, aluminum and other materials. The machine is equipped with a replaceable tool holder that allows you to bevel at different angles, standard angles on the holder are 30°, 37.5°, 45°, 50°, 60°, other angles can be custom ordered. The machine is equipped with a scale so that you can set the bevel height exact.
- The machine is ergonomically designed.
- Weighs only 6kg.
- Cuts are available for purchase so that you can make edge roundings with a radius of 2.5/3.5/4mm.
- high performance German manufactured motor and transmission from German Fein.
- Fasvinkel: 30-60° (andra vinklar specialbeställes)
- Bevel width: 15mm (0-15mm for materials up to 400N/mm2, 0-8mm in materials over 400N/mm2)
- Rounding radius: R=2.5, 3.5, 4mm
- Speed: 6600 Rpm
- Voltage: 230V/ 50Hz
- Power: 2500W
- Weight: 9.5kg
- B-Dock, docking station to make the machine stationary.
- X-Pipe beveler, to be able to chamfer pipes.
